JM Hardware® DIN 7967 M4-M64 Pal Nut / Self Locking Counter Nut
JM Hardware® DIN 7967 M4-M64 Pal Nut / Self Locking Counter Nut
JM Hardware® DIN 7967 M4-M64 Pal Nut / Self Locking Counter Nut
JM Hardware® DIN 7967 M4-M64 Pal Nut / Self Locking Counter Nut
JM Hardware® DIN 7967 M4-M64 Pal Nut / Self Locking Counter Nut
JM Hardware® DIN 7967 M4-M64 Pal Nut / Self Locking Counter Nut
JM Hardware® DIN 7967 M4-M64 Pal Nut / Self Locking Counter Nut
JM Hardware® DIN 7967 M4-M64 Pal Nut / Self Locking Counter Nut
JM Hardware® DIN 7967 M4-M64 Pal Nut / Self Locking Counter Nut
JM Hardware® DIN 7967 M4-M64 Pal Nut / Self Locking Counter Nut
JM Hardware® DIN 7967 M4-M64 Pal Nut / Self Locking Counter Nut
JM Hardware® DIN 7967 M4-M64 Pal Nut / Self Locking Counter Nut
JM Hardware® DIN 7967 M4-M64 Pal Nut / Self Locking Counter Nut
Contact Us
  • Description

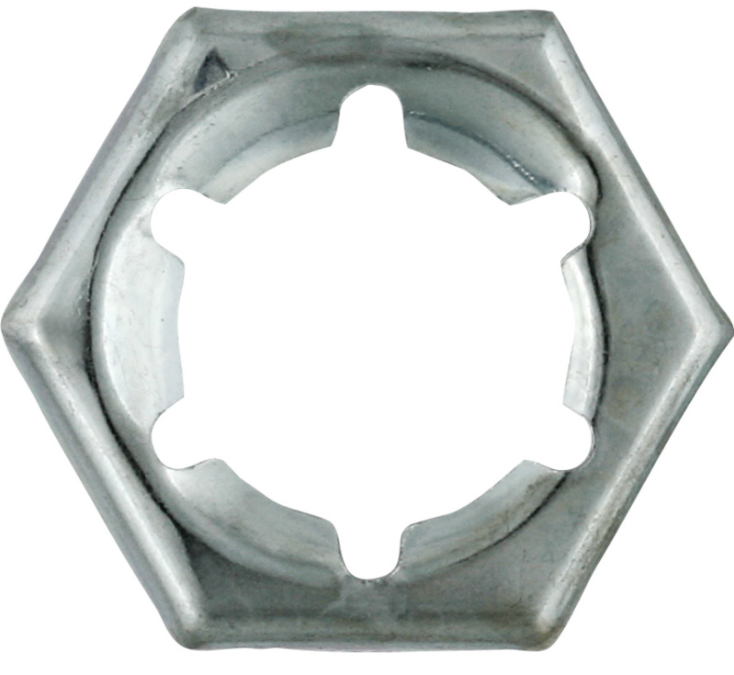

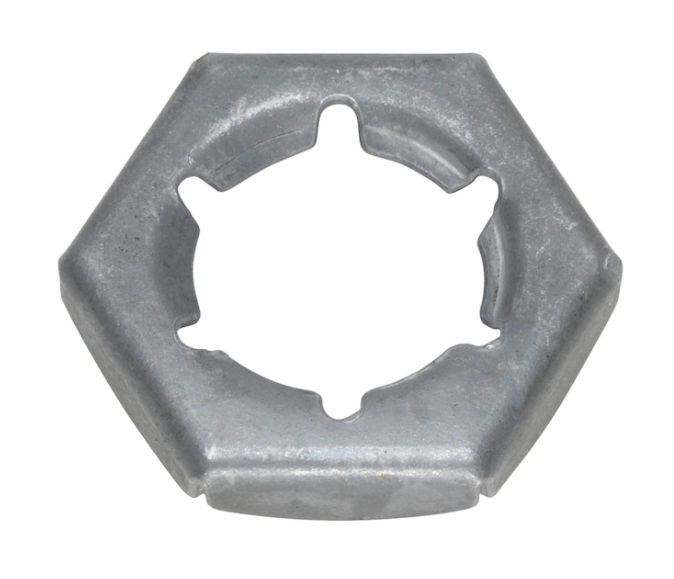

DIN 7967 Pal Nut (Self Locking Counter Nut) are engineered, lightweight one-piece fasteners made of a single-piece of spring steel. They provide a strong fastening solution that is easy to install and replaces costly thread nuts, lock washers, and spanner washers, eliminating time-consuming assembly operations

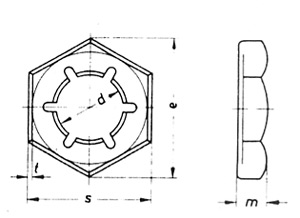

Metric Technical Data
Thread Diameter d (mm) e (mm) s (mm) t (mm) m (mm)
3.5 8.1 7 0.3 2.5
M5 4.5 9.2 8 0.4 2.5
M6 5.3 11.5 10 0.4 3
M8 6.9 15 13 0.5 3.5
M10 8.6 19.6 17 0.5 4
M12 10.4 21.9 19 0.6 4.5
M14 12 25.4 22 0.6 5
M16 14.1 27.7 24 0.7 5
M18 15.5 31.2 27 0.7 5.5
M20 17.6 34.6 30 0.8 6
M22 19.6 36.9 32 0.8 6
M24 21 41.6 36 0.9 7
M27 24.2 47.3 41 1 7
M30 26.6 53.1 46 1.1 8
M33 29.8 57.7 50 1.2 8
M36 32.2 63.5 55 1.3 9
M39 35.2 69.3 60 1.3 9
M42 37.6 75 65 1.4 11
M45 40.9 80.8 70 1.5 12
M48 43.9 86.5 75 1.6 14
M52 48.2 92.4 80 1.7 16
M56 51.2 97 85 2 16
M60 55.2 90 2 16
M64 58.3 107.05 95 2 16
M68 62.3 113.68 100 2 16
M72 66.3 120.2 106 2 16
M76 70.5 131.5 116 2 18
M80 74.5 145.25 128 2 20
Production Display
  • Round and glossy without burrs
  • Clear corners beautiful & durables
  • Different Size available
  • Hot Dip Galvanized Strong anti-corrosion
JM Hardware® provides various styles of furniture nuts, and also provides customized services, you can send your specific requirements to our

JM Hardware® provides free samples of the above products during the Black Friday event. If you have any demand for these products, please contact our email:

Brand Story

The inception of the JM Hardware® brand was a profound moment born out of a fateful business trip. During a trip abroad, I was flipping through a newspaper when I came across a heartbreaking story about a steel building that had collapsed due to a batch of substandard fasteners. The tragic images and casualties left an indelible mark on me.

From that moment on, our commitment to putting product quality first became a cornerstone of JM Hardware®, engraved in the DNA of our brand. With this unwavering commitment, JM Hardware® set out to set a new standard for quality. We spend countless hours researching, developing, and testing each product to ensure that they not only meet industry standards, but that they also meet the company's own higher standards. This journey is driven not by profit, but by a deep sense of responsibility - the responsibility to protect a person, a family, a community.

JM Hardware® stands as a testament to that enduring commitment. Every product that bears the JM Hardware® name will be synonymous with excellence, durability and safety.

JM Hardware®: the combination of quality and integrity.

-------- Mrs. Xarella Huang

General President

  • 2006
  • 34000T
    Production Quantity Each Year
  • 85+
    Export Country
  • 850 +
    R&D New Products
Why Choose Us
  • Supply one-stop service & DDP term
    Help clients purchase other products,realize door-to-door service to make international procurement more convenient
  • Strong R&D Capability
    Successfully developed 850+ new products in past 18 years
  • Mature & professional service teams
    Provides 24/7 online and offline services for you,70%stuff have 5+ working experience in JM
  • Rich Industry Experience
    JM has the rich experience to supply the high quality fasteners to Project contractor
  • Registered trademarks
    Register JM Hardware ® in USA,EU ,UK,Quality Assurance
  • Rich export experience
    18 years exported to 85+ countries
Quality Control

JM Hardware conducts product quality control in strict accordance with ISO 9001 standards to ensure that our products meet high quality standards. Below are our five quality control steps:

Step 1: Incoming material control

We carry out strict incoming material control by conducting dimensional tests on each batch of raw materials and checking the raw material reports from the steel mills. This ensures that the raw materials we use are within specification and provide a reliable basis for production.

Step 2: First part control
After the mold assembly is completed, we conduct a thorough inspection of the first production part and make detailed records. Only qualified first parts can be released to start mass production. This step ensures that the quality of the product meets the standard at the beginning.

Step 3: Self-inspection by workers during mass production
In the mass production process, we require the workers of each machine to carry out self-inspection every hour. If any substandard product is found, we will immediately pick or scrap the production within this hour until the problem is solved and meets the standard of conformity, and then we can continue the production. This self-inspection mechanism helps to find and solve problems in time during the production process.

Step 4: QC inspection during mass production
In addition, every two hours, the quality inspection personnel will carry out random inspection on the products of each machine. Only qualified products can continue to flow into the next production stage. If non-conforming products are found, we will take the same selection or scrapping measures and ensure that the problem is properly handled. This helps provide additional quality assurance.

Step 5: Finished product control
Finally, after each batch of finished product is made, we conduct random inspections in proportion to the order. Qualified products will be packaged and put into storage, while unqualified products will be returned for further analysis and rectification. We insist on ensuring that the quality of our products meets high standards so that we can provide reliable products to our customers.

Step 6: Non-conforming goods management
According to the process of JMhardware's non-conforming products handling, pick or scrap. And the problem of rectification and tracking reasons to ensure that non-conforming products will not flow into the market.

These quality control measures constitute JM Hardware's quality management system, and we are constantly striving to improve the quality of our products and are committed to meeting the needs of our customers. We believe that quality control is the key to our success.

Production Equipment
Testing Equipment
Test report
  • JM Small Box & JM Carton
  • Small bag with lable & Nature carton
  • Small box & Nature carton
  • 90kgs Metal keg & Wood solid pallet
  • Wood case & Plastic keg with wood solid pallet
  • Fumigation wood pallets & Non fumigation pallets
  • Paper sleeve & Plastic bag + Non fumigation pallets
  • Wooden case& Woven bag + Non fumigation pallets
  • Container Packing

Our vision is to make JM Hardware® a well-known Chinese brand of high-end hardware parts in the world,and your cooperation will be an important part of it

If you do not see the product you need, or you have special customization requirements, you can send an email to JM Hardware® will do our best to help you solve the problem
