Material Carbon steel zinc plated
Fastener Type Socket Head
Metal Type Alloy Steel, Aluminum, Carbon Steel
Thread Size Rivet Nut Kit 1
Drive System Spline
Carbon Steel Yellow Zinc Metric Flat Head Knurled Body Rivet Nut

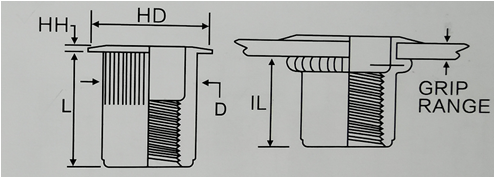

Thread Size T(Grip range) Hole size HD HH L D IL
+.006"/-0 +/-.010" +/-.003" +/- .015 Max. Max.
8-32 UNC .020-.080" 9/32(.281") .390" .035" .470" .272" .305"
10-24 UNC .020-.130" 9/32(.281") .390" .035" .490" .272" .315"
1/4-20 UNC .027-.165" 23/64(.359") .500" .051" .570" .350" .380"
5/16-18 UNC .027-.150" 27/64(.437") .569" .056" .657" .429" .470"
3/8-16 UNC .027-.150" 17/32(.5312") .680" .035" .685" .530" .470"
1/2-13 UNC .063-.200" 11/16(.6875") .865" 1.066" 1.065" 0.675" .850"
Carbon Steel Yellow Zinc Metric Flat Head Knurled Body Rivet Nut

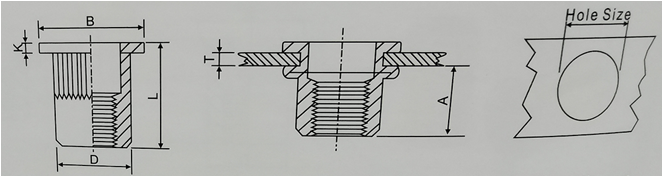

Thread Size T(Grip range) A Hole size D B K L
Min-Max Ref. 0/+0.1 -0.1 / +0.07
M3 0.5-1.5 6 5 4.9 7.6 0.8 9
M4 0.5-2.0 6 6 5.9 10 0.8 11
M5 0.5-2.5 7.5 7 6.9 10 1 13
M6 0.5-3.0 9.2 9 8.9 12.3 1.4 15
M8 1.0-3.5 11 11 10.9 14.5 1.5 18
M10 1.0-4.0 13 13 12.9 17 1.6 21
M12 1.0-4.0 15 15 14.9 18 1.7 22
