Contact Us
  • Description
  • Parameters
  • Application
  • Custom Reviews


MOQ: 500kgs

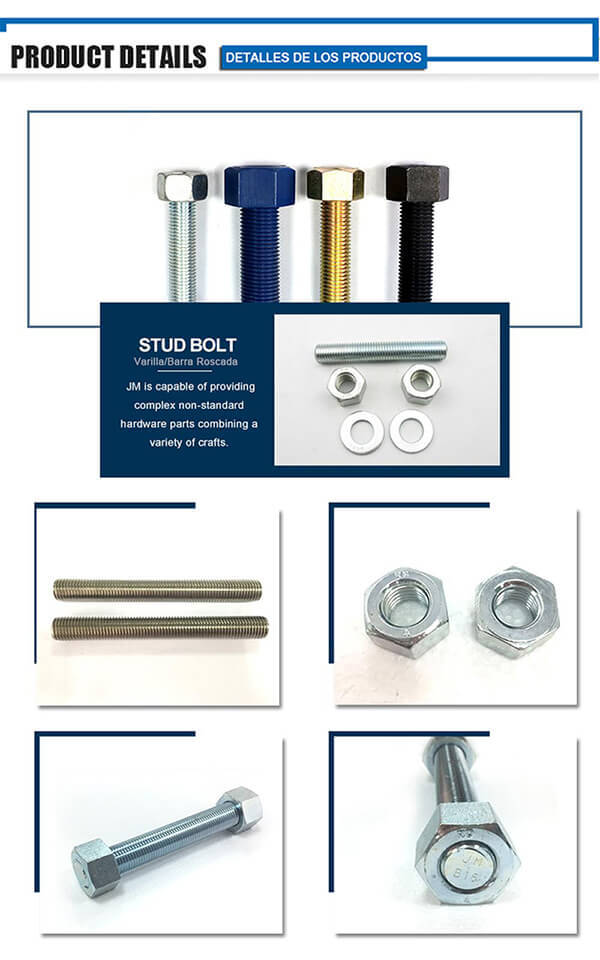

Stud Bolt/ Thread Rod
  • Product Features:

    Standard: IFI-136
    Size: 1/4”-4”, M5-M64; Length: <=6m
    Material: Carbon Steel, Alloy Steel, Stainless Steel, Brass
    Grade: ASTM A193 Gr.B7, B7M, B16, A193.B8,B8M; A320 L7,L7M
    Thread: 8UN
    Finish: Plain, Zinc Plated(Clear/Blue/Yellow/Black/Green)(ROHS), Black oxide, Nickel, Dacrotized, H.D.G., Mechanical galvanized, PTFE(Teflon),Xylan,Zinc Flake
  • Website:

    www.jm-industry.com
  • Trade Term & Payment

    Trade Term:
    FOB/CIF/CFR/CNF/EXW/DDU/DDP
    Payment :
    T/T, L/C , D/A , D/P , Western Union,etc
  • Packaging Details:

    a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet
    b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet
    c. according to customer special demand
  • Supply Ability & MOQ:

    1000 tons per month
    MinimumOrder:
    500kgs for each specification
  • Market:

    South&north Amrica/Europe/East&South east Asia/ Australia and ect.













Nominal Size or Basic Stud Diameter Body Diameter Nut Ends
E F G F G G
Type 1 Type 1 Type 3 Type 4 For Studs up To and Including 6 in. Length For Studs Over 6 in. Length For Short Studs
Thread Length Thread Length Thread Length
Full Thread Total Thread Full Thread Total Thread
Max Min Max Min Max Min Max Min Min Max Min Max
1/4       (0.2500) -- -- 0.2500 0.2127 0.2500 0.2408 -- -- 0.750 0.875 1.000 1.125 --
5/16     (0.3125) -- -- 0.3125 0.2712 0.3125 0.3026 -- -- 0.875 1.031 1.125 1.281 --
3/8       (0.3750) -- -- 0.3750 0.3287 0.3750 0.3643 -- -- 1.000 1.188 1.250 1.438 --
7/16     (0.4375) -- -- 0.4375 0.3850 0.4375 0.4258 -- -- 1.125 1.344 1 375 1 594 --
1/2       (0.5000) -- -- 0.5000 0.4435 0.5000 0.4876 -- -- 1.250 1.500 1 500 1 750 --
9/16     (0.5625) -- -- 0.5625 0.5016 0.5625 0.5495 -- -- 1.375 1.656 1.625 1.906 --
5/8       (0.6250) -- -- 0.6250 0.5589 0.6250 0.6113 -- -- 1.500 1.812 1.750 2.062 --
3/4      ( 0.7500) -- -- 0.7500 0.6773 0.7500 0.7353 -- -- 1.750 2.125 2.000 2.375 --
7/8       (0.8750) -- -- 0.8750 0.7946 0.8750 0.8592 -- -- 2.000 2.438 2.250 2.688 --
1         (1.0000) -- -- 1.0000 0.9100 1.0000 0.9830 -- -- 2.250 2.750 2.500 3.000 --
1-1/8      (1.1250) -- -- 1.1250 1.0228 1.1250 1.1064 -- -- 2.500 3.062 2.750 3.312 --
1-1/4    (1.2500) -- -- 1.2500 1.1476 1.2500 1.2314 -- -- 2.750 3.375 3.000 3.625 --
1-3/8      (1.3750) -- -- 1.3750 1.2563 1.3750 1.3544 -- -- 3.000 3.688 3.250 3.928 --
1-1/2      (1.5000) -- -- 1.5000 1.3812 1.5000 1.4794 -- -- 3.250 4.000 3.500 4.250 --
